2020 Mixer Systems 2 Yard Horizontal Mixer Concrete Plant

2020 Mixer Systems 2 Yard Horizontal Mixer Concrete Plant:

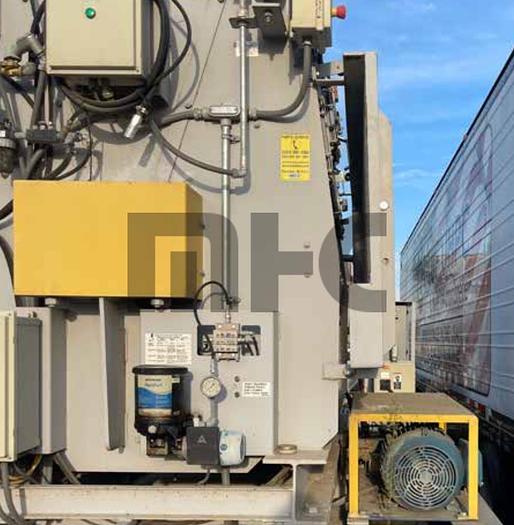

Horizontal Shaft Mixer Model 54 Assembly consisting of the following:

• 54 cu.ft. or 5,400 LBS input capacity (whichever comes first)
• 60 HP, 230/460 Volt, 3 PHASE, 60 HZ, TEFC Electric Motor
• Shaft Mounted Speed Reducer w/V-Belts from Motor
• Steel Mixing Tank w/Drain Plug
• Replaceable Cast Ni-Hard (550 Brinell Hardness) Tank Liners
• Replaceable 3/8" thick abrasion resistant steel (225 Brinell Hardness) Wall Liners
• Replaceable Cast Ni-Hard (550 Brinell hardness) Floor Paddle and Wall Scrapers
• Access/Service Door(s) on Charge Side of Mixer
• Access/Service Door(s) on Discharge Side of Mixer

Mixer Discharge Chute

Mixer Automatic Washout System

Maintenance Platform

Weigh Batcher

• Two Compartment
• 40 cu.ft. Volume Capacity (Each Compartment)
• 3/16" Steel Batcher

Water Meter

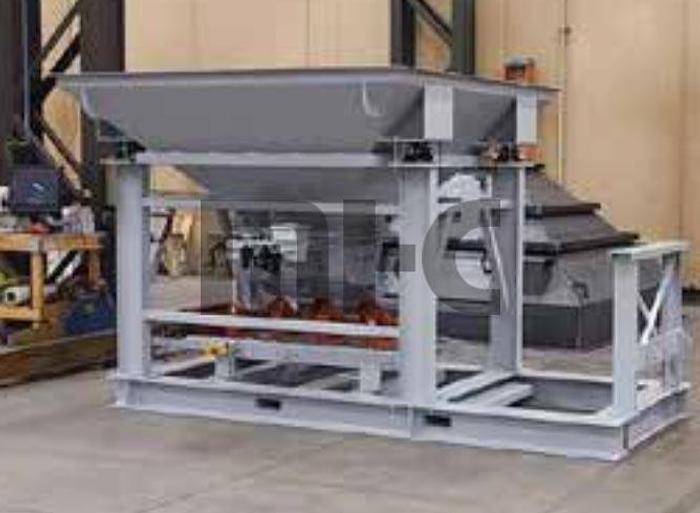

Aggregate Storage Bin With Conveyor Belt

• 5 Ton Capacity, Base on Material Weight of 100 LBS per cu.ft.
• 100 cu.ft. Water Level Volume
• 8' x 8' Open Top Charge Area
• 1/4" Thick Steel
• Load Cell for Accurate Decummalative Weighing
• Structural Steel Bin Support Stand

Aggregate Belt Conveyor Assembly Consisting of:

• 5 HP, 230/460 Volt, 3 Phase, 60 HZ, TEFC Electric Gearmotor Assembly
• Lagged Head Pulley
• 18" Wide 2-Ply Cleated Belt
• Loading Area with Chute Area
• Conveyor Spliced For Easy Transportation

Hydronix Hydro-Probe Sensor

Cement Storage

• Two Compartment, Approximately 65 cu.ft Each
• 3/16" Steel Compartments
• Bin Vent
• Manual Super-Sack Loading Through a Top Mounted Inet
• Super-Sac Entrance -- Manually Operated
• Emergency Slide Gate

Two (2) Cement Screw Conbeyors

• 10 HP, 230/460 V, 3 PH, 60 HZ, TEFC Electric Motor and Gear Reducer Drive Case
• Inlet Mounted Drive
• AR400 Flighting
• Canvas Connection to Weigh Batcher
• Swivel Ball Joint at Compartment Connection
• Screw Connections Swivel Down for Transportation

Two-Stage Air Compressor

• Tank Mounted Reciprocating Compressor
• 120 Gal Tank
• 35.2 CFM @ 125 PSI

Skid Mounted

Multi-Motor Starter Panel

Mixer Systems Batch Control System:

• Programmable Logic Controller (PLC)
• The Control System Supports Operator Entered Ingredient Names for Mix Designs, Batching and Reporting
• NEMA 4 Electrical Control Enclosure
• Control Power By 120VAC, 60HZ, Single Phase Current (Dedicated Power is Recommended)
• Menu Drive Color Touch Screen Complete w/ Auto and Manual Controls for operating System
• Storage for 50 Programmable Mix Designs
• Multi-Level Password protection of Batch Control System
• Aggregate Net Weighing or Decumulative Weighing
• Report Printing
• Remote Batch Data Collection
• Auto Moisture Control (with Hydronix Bin Moisture Sensor Probe)
• Materials Controlled:
• Aggregates
• Cements or Powders
• Waters
• Admixtures/Colors
• Recordation Module
• OPC Server Tool
• Remote Factory Support Module with MSI Supplied Personal Laptop Computer
