$75,000 (USD)
Vince Hagan Portable Concrete Batch Plant
No longer available

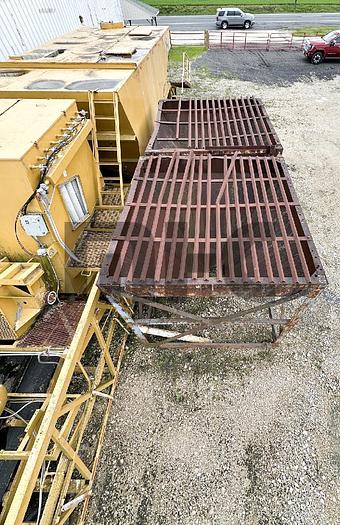

![Used 1999 Vince Hagan Portable Concrete Batch Plant](https://i.machineryhost.com/86df7dcfd896fcaf2674f757a2463eba/7d88b1e07f1d4c681211fd47d81cd4cb/large-used-1999-vince-hagan-portable-concrete-batch-plant.jpg)
Description

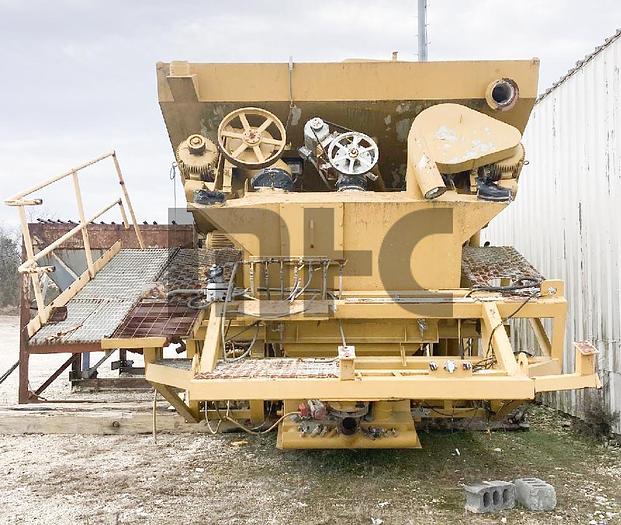

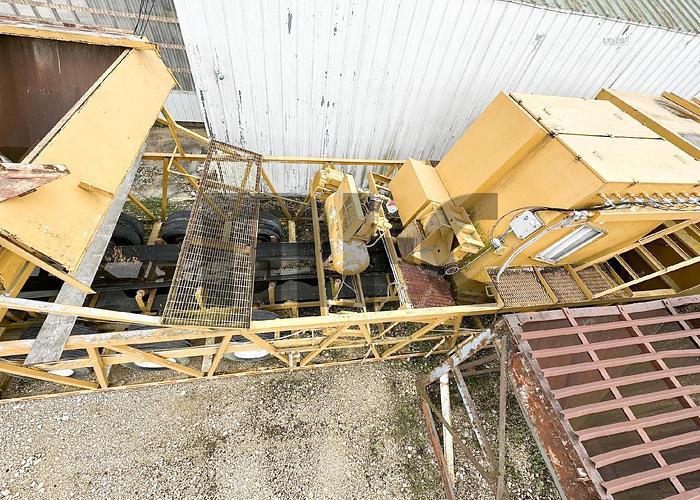

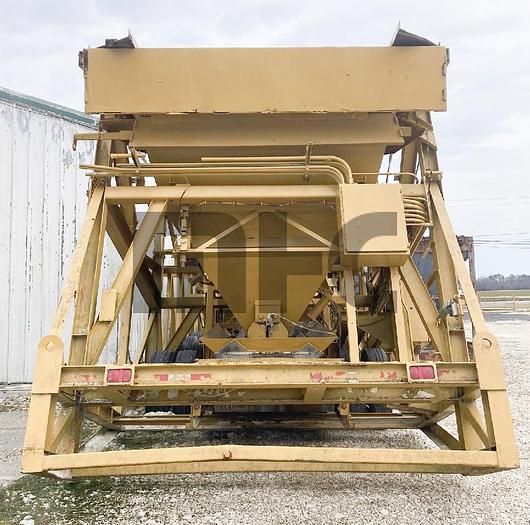

VINCE HAGAN Portable Concrete Batch Plant:

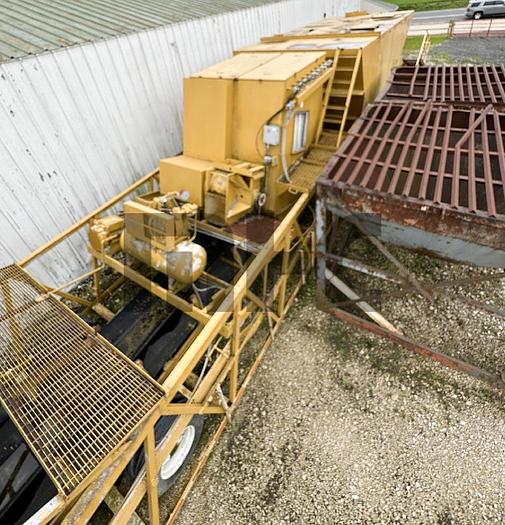

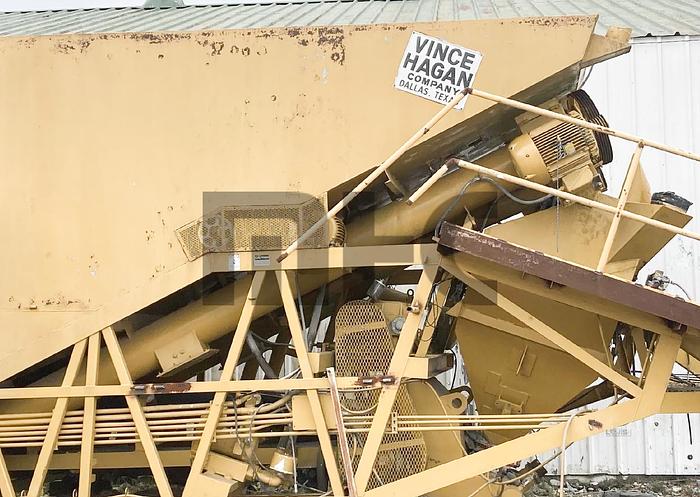

- Cement Storage: Two Compartment (25/75), 470 Bbl, In-truss w/twin 12" Cement Augers and one(1) 10" Fly Ash Auger

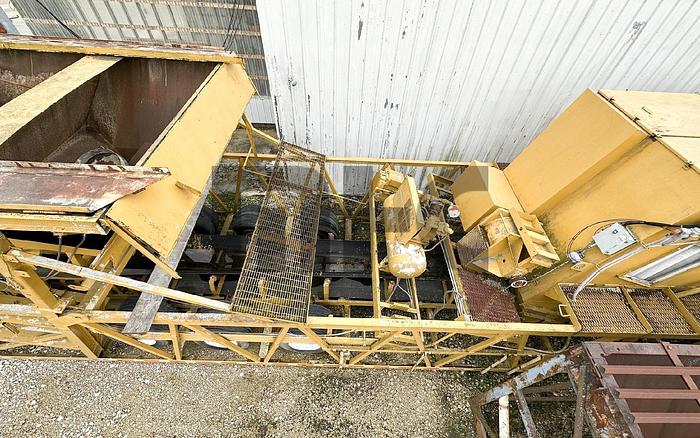

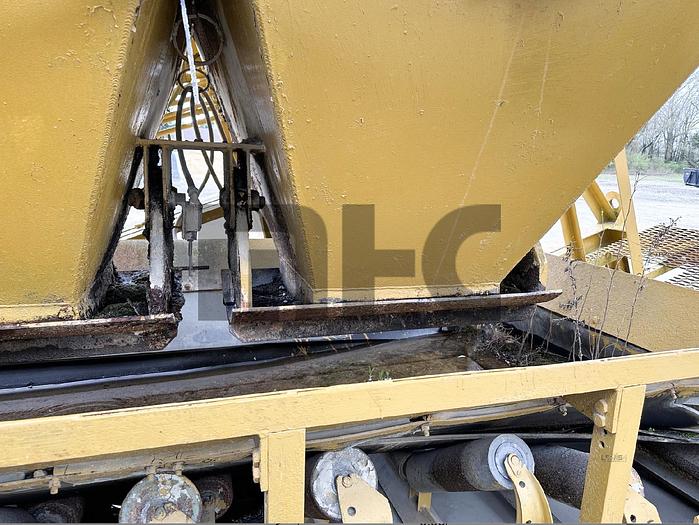

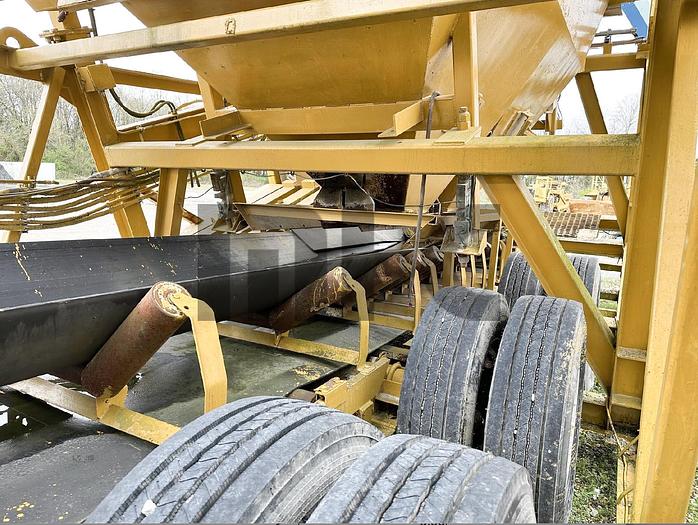

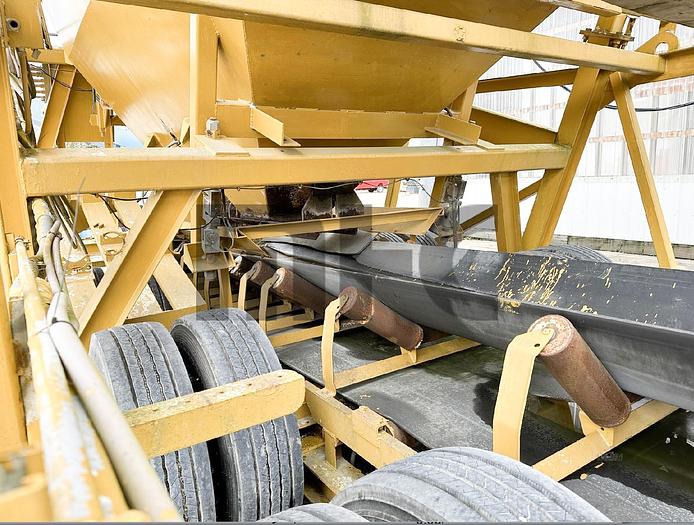

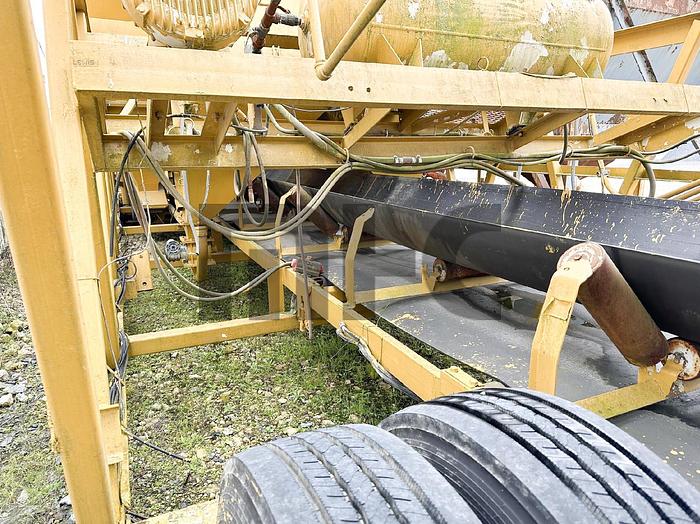

- Aggregate Batch Transfer Belt Conveyor: 48"

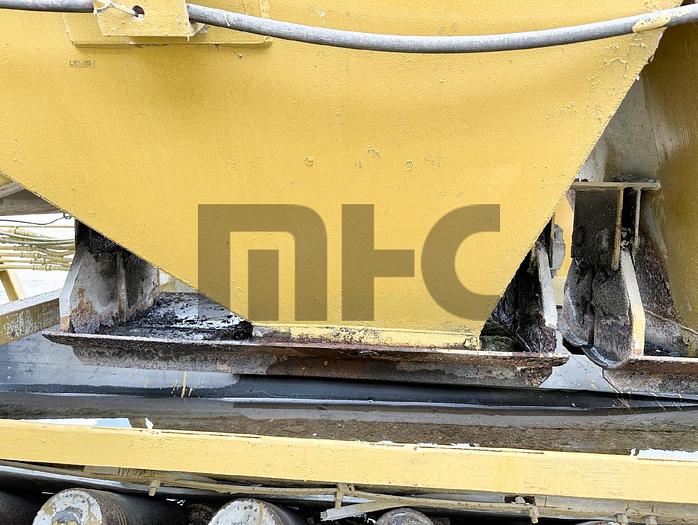

- Aggregate Storage: Accumulative, 65 Ton, 3-Compartment

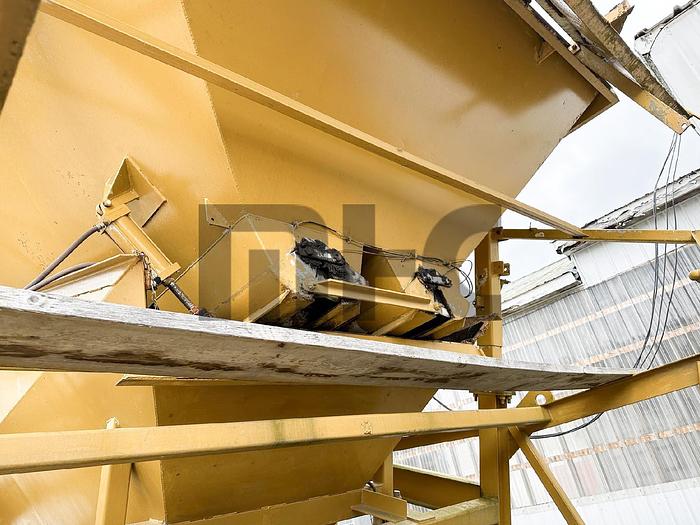

- Aggregate Batching: 10 Yard
- Cement Batching: 10 Yard (111 cu.ft.)

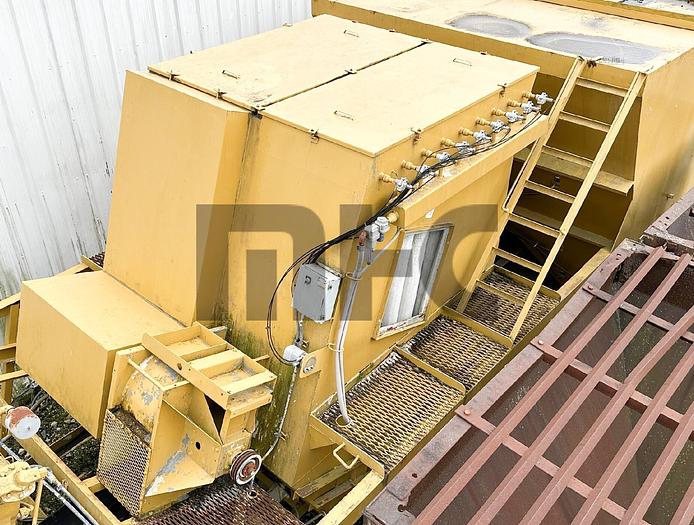

- Dust Collection: Model VH-1083JP "Jet Pulse" w/ 15hp/6500 CFM air foil blower
- Transportation: Towable W/King Pin, 1ST Axle: 43'-6", 2ND Axle: 49', 3RD Axle: 54'-6", 4TH Axle: 60'-0"
- Length: 72'-0"
- Height: 15'-0"
- Width: 12' W/Walkway 12'-10"
- Weight: 85,000 LBS

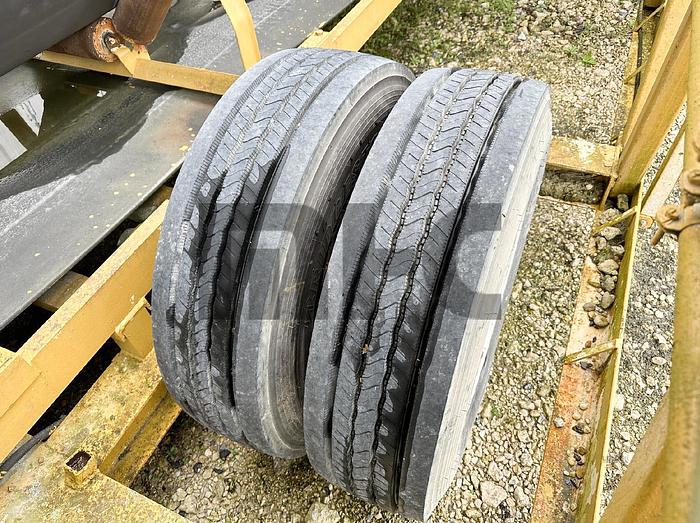

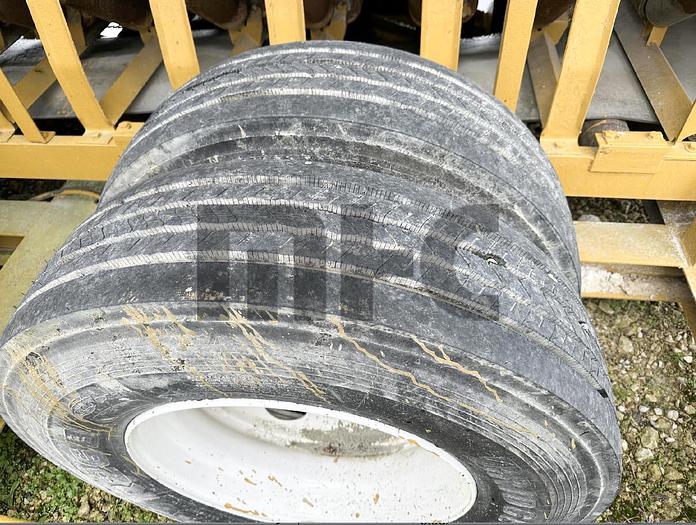

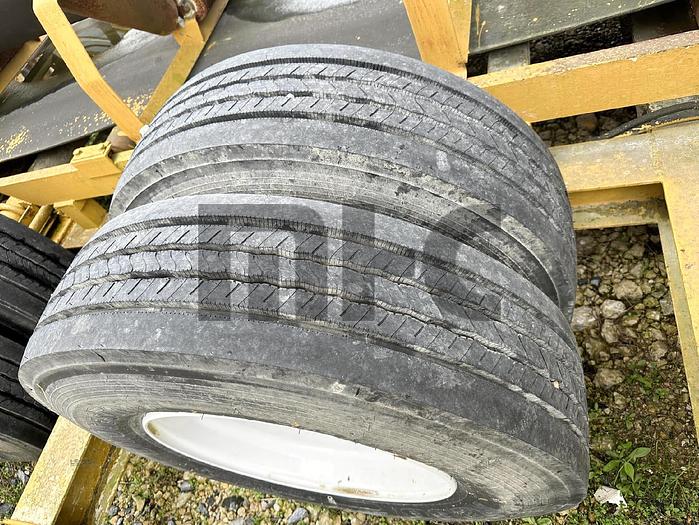

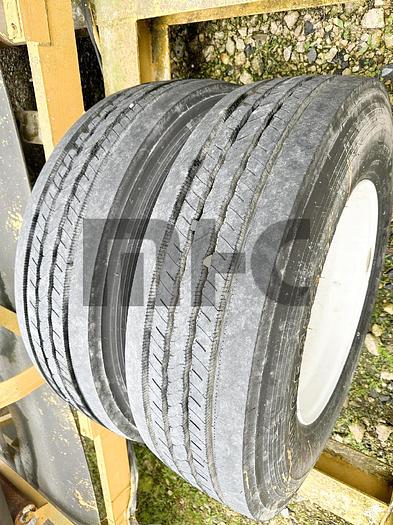

- Tires: 295/75R22.5
Notes:

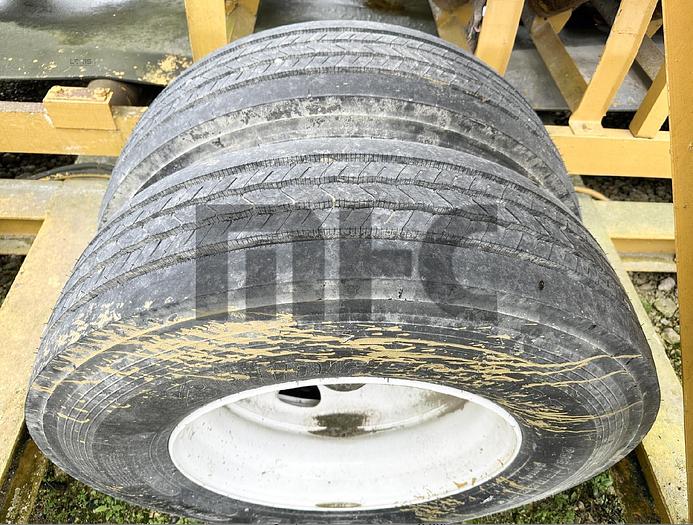

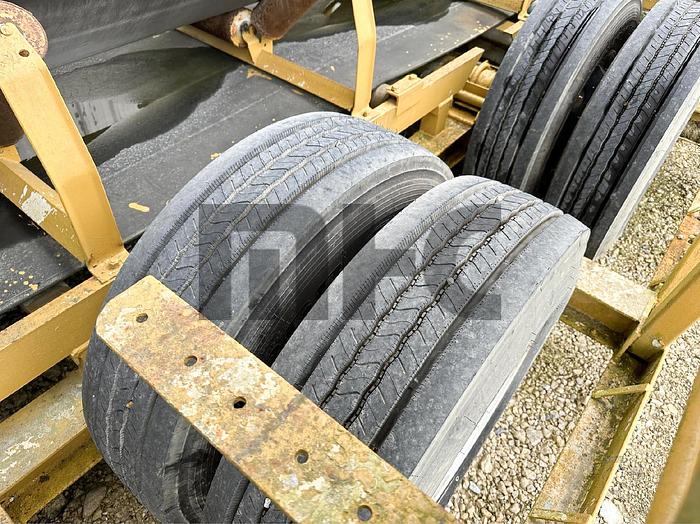

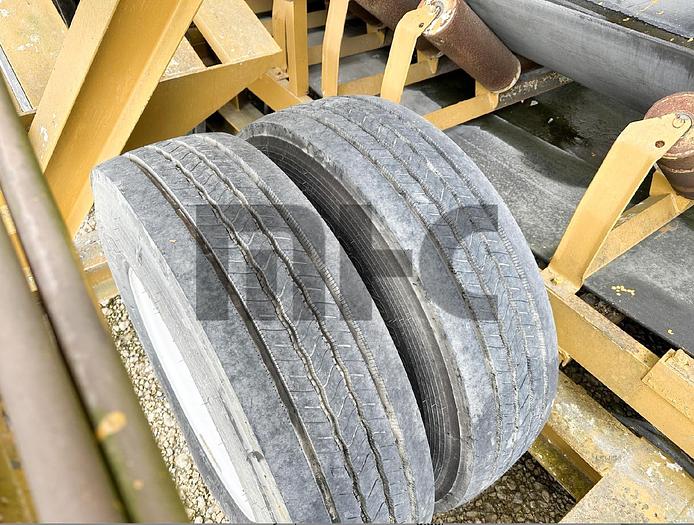

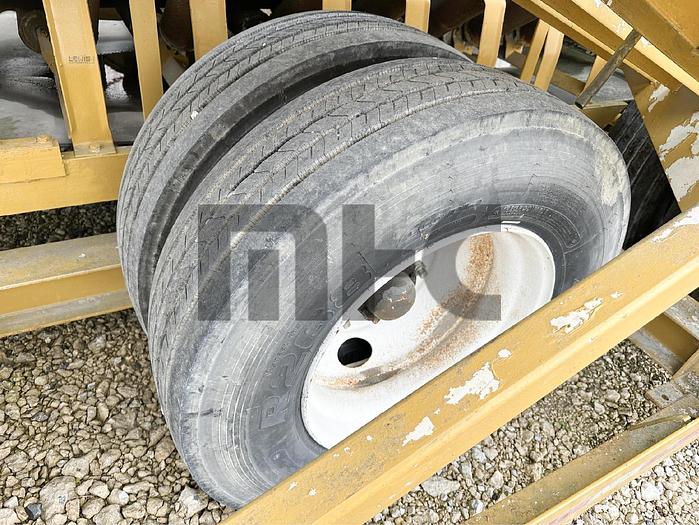

- (16) New Tires on Steel Wheels.

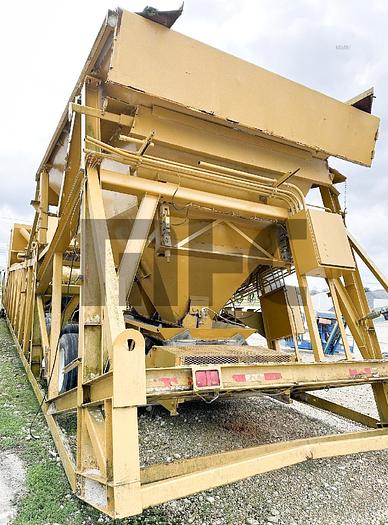

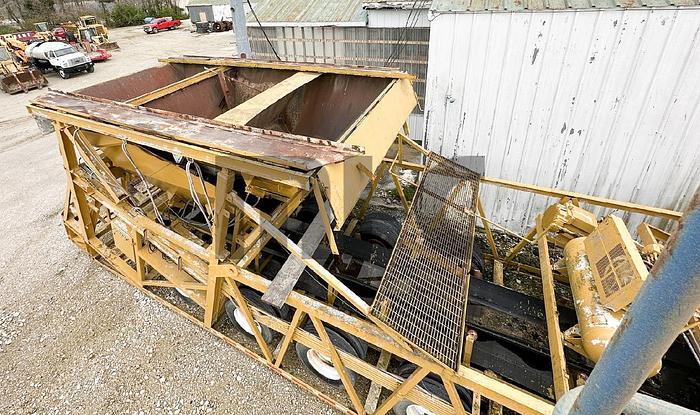

- Aggregate section drops down into Aggregate Batcher in transportation mode.
- Original Quote, General Arrangement and Electrical drawings are available in pdf format below.
Specifications
Manufacturer | Vince Hagan |
Model | SHT10480D-65 |
Year | 1999 |
Condition | Used |
Stock Number | 00340 |
