2020 Tuckerbilt (non DEF) T644 Concrete Mix Transporter

United States

No longer available

Description

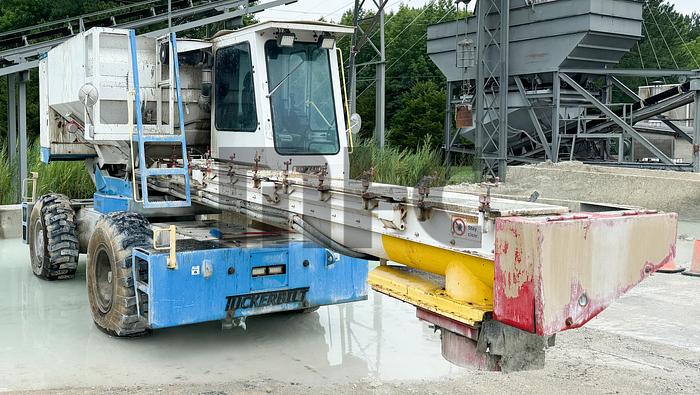

2020 Tuckerilbt T644 (non-DEF) Concrete Mix Transporter:

  • Hours: 1270
  • WEIGHT Approximately 22,500 Lbs (10,206 Kg)
  • ENGINE JCB 320/50427 Engine Tier IV Certified 145 Continuous Bhp @ 2200 RPM CAN Technology adjusts RPM to horsepower required for maximum fuel economy!
  • TRANSMISSION Danfoss H1 Hydrostatic Drive. Speed infinitely variable to maximum of 13 MPH (21 KM) with Creep Mode setting for efficient pouring at the Form. Maximum grade 6%. WORK FUNCTION PUMP-VALVING Pressure compensated CAN controlled for HP on Demand. Fuel Savings!
  • ARTICULATED STEERING Standard Feature for greatest maneuverability. 11 Ft. (335cm) Inside Tires Turning Radius 20 Ft. (610cm) Outside Tires Turning Radius
  • AXLES Rear: 28,000 Lb. (12,700 KG) solid mount with planetary reduction. Front: 20,000 Lb. (9,072 Kg) air bag mounted for smoothers ride. Drum-type air actuated brakes with safety braking system in case of failure. Spring Brakes for parking.
  • TIRES 17.5 x 25 (445.5mm x 635mm) Loader type
  • HOPPER Capacity: 6 yards (4.58m3). Integrated Splash Deflector. Swing Hydraulic - 90 degrees left and right for full 180 degree reach. Lift: Hydraulic. Vibrators: Air
  • AUGER- TROUGH Infinitely adjustable speed. Almost 50% faster delivery than models preceding 2010. Almost 2 Ft Higher Reach. 14" (355mm) diameter- 3/8" (9.52mm) thick AR Plate. Handles low-slump, standard mix, or SCC. Trough: 15" (381mm) diameter - 3/16" (4.76mm) thick - abrasion-resistant alloy.

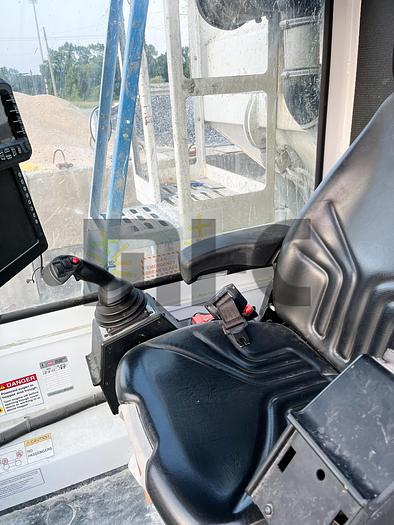

  • ENCLOSED CLIMATE CONTROLLED CAB Air Conditioned and heated for reduced exposure to elements. Operator adjustable suspension seat with operator present switch. Ergonomic design and ride. Equipped with dual joysticks for full fingertip control of all functions.

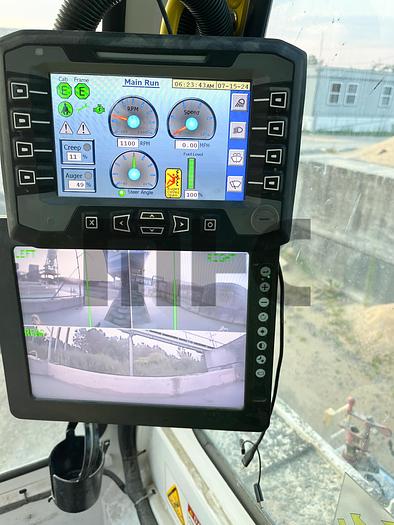

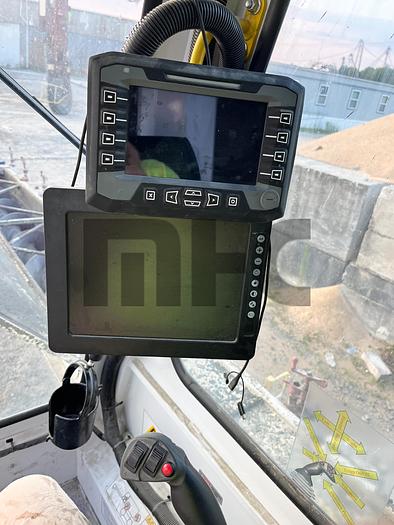

  • TRI-VIEW CAMERAS 3 Cameras. 1 rear facing, 1 on each side. Always On, in cab display for maximum visibility & safety.

Notes:

  1. Unit is currently producing and may not be removed from site until 09/01/24.
  2. This unit does not have a DEF system.

Specifications

ManufacturerTuckerbilt
ModelT644
Year2020
ConditionUsed
Stock Number00365
