Belgrade "Belle" Style Dust House

Square Ft. Bag Area Cap. Cement

150 375 C.F.M.

225 675 C.F.M.

“Belle” Filter Sock Specifications

Style: PE 37

Fiber: 100% Polyester

Weight: 9 oz./Sq. Yd.

Construction: Spun/Spun

Count: 100W x 60F

Air Permeability: 20-30 C.F.M.

Mullen Burst: 500 PSI

Tensile Strength: Warp Direction 300#, Fil Direction 275#

Thermal Stability: 2% Max. #00 Degrees F

Max Operating Temp: 275 Degrees F

Efficiency: 99.99%

The dust house is equipped with either an air powered or electric powered vibrator used for the cleaning of the bags. If air powered, connect air supply line to the port located on center above the door, and supply the vibrator with 80 psi oiled or non-oiled air. If electric powered, reconnect power cord which exits the top side of dust house to the control box supplied. Operate vibration for approx. 5-10 minutes after each load of material has been blown in.

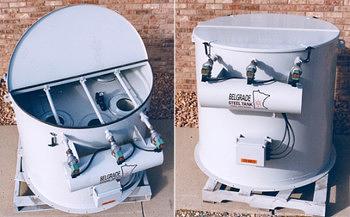

Belgrade 330 Pulse Jet Dust House

Collector Specifications

Total Filtration Area: 330 Sq. Ft.

Air to Cloth Ratio (ACFM/SQ.’): 4.8

Pressure Drop: 6″

Air Capacity: 1600

Outlet Area (Sq. ‘): .83

Cleaning Method: Pulse Jet

Inlet Dust Concentration at 15 Gr./Cu.’: 25,000

Outlet Emissions (Gr./Min): 2.50

Outlet Dust Loading (Gr./Cu.’): .0015

Air Consumption: 8 CFM

Solenoids: 3 w/ Timer Board

Filter Cartridge Specifications

Dimensions: (6) 10.09″ OD x 5.75″ ID x 26″ Height

Top End Cap: G60 Galvanized – Open with 11.000″ Flange

Bottom End Cap: G60 Galvanized – Closed

Gasket: 5/8″ Height x 10″ ID Neoprene

Outer RetainerRetainer Bands

Inner Core: Galvanized Expanded Metal, 72% Open

Filter Area: 55 Square Feet

Fiber: 100% Spun Bond Polyester

Material Weight: 8 oz / Square Yard

Permeability: 24 C.F.M

Mullen Burst Dry: 388 PSI

Temperature Limit: 275 Degrees Fahrenheit

Efficiency: 99.99%

Operation Recommendations

Supply unit with 100 PSI air pressure and 110 volt power.
Turn on unit when the filling cycle begins.
Continue to operate unit 5-10 minutes after filling cycle is complete

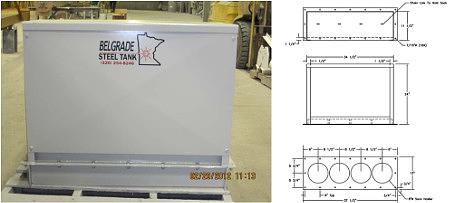

Belgrade Filter Vent

Filter Vent Specifications

Style: PE 37

Fiber: 100% Polyester

Weight: 9 oz./Sq. Yd.

Construction: Spun/Spun

Count: 100W x 60F

Air Permeability: 20-30 C.F.M.

Mullen Burst: 500 PSI

Tensile Strength: Warp Direction 300#, Fil Direction 275#

Thermal Stability: 2% Max. #00 Degrees F

Max Operating Temp: 275 Degrees F

Efficiency: 99.99%
